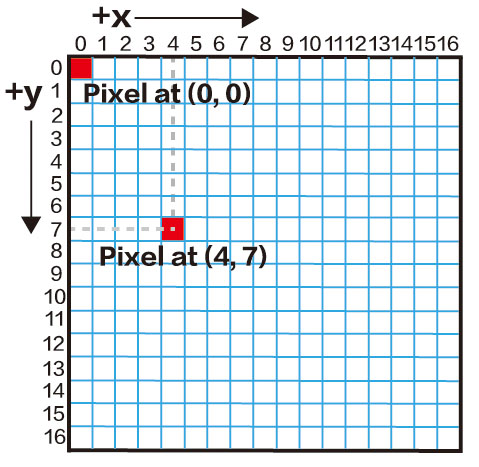

ピクセル座標系
8ビットカラーモデル
| ビット | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| データ | 赤 | 赤 | 赤 | 緑 | 緑 | 緑 | 青 | 青 |
16ビットカラーモデル
| ビット | 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| データ | 赤 | 赤 | 赤 | 赤 | 赤 | 緑 | 緑 | 緑 | 緑 | 緑 | 緑 | 青 | 青 | 青 | 青 | 青 |
事前定義された色の例（16ビット）
#define TFT_BLACK 0x0000 /* 0, 0, 0 */
#define TFT_NAVY 0x000F /* 0, 0, 128 */
#define TFT_DARKGREEN 0x03E0 /* 0, 128, 0 */
#define TFT_DARKCYAN 0x03EF /* 0, 128, 128 */
#define TFT_MAROON 0x7800 /* 128, 0, 0 */
#define TFT_PURPLE 0x780F /* 128, 0, 128 */
#define TFT_OLIVE 0x7BE0 /* 128, 128, 0 */
#define TFT_LIGHTGREY 0xC618 /* 192, 192, 192 */
#define TFT_DARKGREY 0x7BEF /* 128, 128, 128 */
#define TFT_BLUE 0x001F /* 0, 0, 255 */
#define TFT_GREEN 0x07E0 /* 0, 255, 0 */
#define TFT_CYAN 0x07FF /* 0, 255, 255 */
#define TFT_RED 0xF800 /* 255, 0, 0 */
#define TFT_MAGENTA 0xF81F /* 255, 0, 255 */
#define TFT_YELLOW 0xFFE0 /* 255, 255, 0 */
#define TFT_WHITE 0xFFFF /* 255, 255, 255 */
#define TFT_ORANGE 0xFDA0 /* 255, 180, 0 */
#define TFT_GREENYELLOW 0xB7E0 /* 180, 255, 0 */
TFT LCDスクリーンの初期化
#include"TFT_eSPI.h"
TFT_eSPI tft;
void setup() {
...
tft.begin();
tft.setRotation(※);
digitalWrite(LCD_BACKLIGHT, HIGH); // turn on the backlight
...
}
コード例
#include"TFT_eSPI.h"
TFT_eSPI tft;
void setup() {
tft.begin();
tft.setRotation(3);
tft.fillScreen(TFT_RED); // fills entire the screen with color red
}
void loop() {
}
LCDバックライトの制御
オンにするには、LCDバックライト制御ピン72UlをHIGHにする。
#include"TFT_eSPI.h"
TFT_eSPI tft;
#define LCD_BACKLIGHT (72Ul) // Control Pin of LCD
void setup() {
// put your setup code here, to run once:
tft.begin();
tft.setRotation(3);
tft.fillScreen(TFT_RED);
delay(2000);
// Turning off the LCD backlight
digitalWrite(LCD_BACKLIGHT, LOW);
delay(2000);
// Turning on the LCD backlight
digitalWrite(LCD_BACKLIGHT, HIGH);
}
void loop() {
// put your main code here, to run repeatedly:
}
LCDバックライトの明るさの制御
This example is written by Kenta IDA and all credits goes to Kenta IDA.
- Download the repo here.
Under examples/WioTerminal_BackLight location. - Upload the code.
Upload the lcd_backlight_control.ino to Wio Terminal and you will see brightness change on the LCD.
#include <TFT_eSPI.h>
#include "lcd_backlight.hpp"
#include <cstdint>
TFT_eSPI tft;
static LCDBackLight backLight;
void setup() {
Serial.begin(115200);
while(!Serial);
tft.begin();
tft.setRotation(3);
tft.fillScreen(tft.color565(255, 0, 0));
Serial.println("initializing backlight...");
backLight.initialize();
}
static std::uint8_t brightness = 0;
void loop() {
std::uint8_t maxBrightness = backLight.getMaxBrightness();
brightness += 1;
if( brightness > maxBrightness ) {
brightness = 0;
}
backLight.setBrightness(brightness);
delay(50);
}
// Copyright 2020 Kenta IDA
// LICENSE: Boost Software License
/**
* @file lcd_backlight.hpp
*/
#ifndef LCD_BACKLIGHT_HPP__
#define LCD_BACKLIGHT_HPP__
//#include <samd51p19a.h>
#include <cstdint>
/**
* @brief Controls Wio Terminal LCD back light brightness
*/
class LCDBackLight
{
private:
std::uint8_t currentBrightness = 100;
std::uint8_t maxBrightness = 100;
public:
/**
* @brief Gets current brightness
* @return current brightness.
*/
std::uint8_t getBrightness() const { return this->currentBrightness; }
/**
* @brief Gets maximum brightness
* @return maximum brightness.
*/
std::uint8_t getMaxBrightness() const { return this->maxBrightness; }
/**
* @brief Sets brightness.
* @param [in] brightness new value of brightness. If the brightness value exceeds maximum brightness, the value will be clipped.
*
*/
void setBrightness(std::uint8_t brightness)
{
this->currentBrightness = brightness < this->maxBrightness ? brightness : this->maxBrightness;
TC0->COUNT8.CC[0].reg = this->currentBrightness;
while(TC0->COUNT8.SYNCBUSY.bit.CC0);
}
/**
* @brief Sets maximum brightness.
* @param [in] maxBrightness new value of maximum brightness. If the current brightness value exceeds maximum brightness, the current brightness will be clipped.
*
*/
void setMaxBrightness(std::uint8_t maxBrightness)
{
this->maxBrightness = maxBrightness;
if( this->currentBrightness > this->maxBrightness ) {
this->currentBrightness = this->maxBrightness;
}
TC0->COUNT8.PER.reg = this->maxBrightness;
while(TC0->COUNT8.SYNCBUSY.bit.PER);
TC0->COUNT8.CC[0].reg = this->currentBrightness;
while(TC0->COUNT8.SYNCBUSY.bit.CC0);
}
/**
* @brief Initialize hardware/peripherals to control back light brightness.
* @remark This function must be called before using other LCDBackLight class member functions.
*/
void initialize()
{
/* Enable Peripheral Clocks */
GCLK->PCHCTRL[9].reg = 0 | (1u<<6); // TC0, TC1
while(!GCLK->PCHCTRL[9].bit.CHEN);
GCLK->PCHCTRL[11].reg = 0 | (1u<<6); // EVSYS[0]
while(!GCLK->PCHCTRL[11].bit.CHEN);
GCLK->PCHCTRL[33].reg = 0 | (1u<<6); // CCL
while(!GCLK->PCHCTRL[33].bit.CHEN);
/* Enable Peropheral APB Clocks */
MCLK->APBAMASK.bit.TC0_ = 1;
MCLK->APBBMASK.bit.EVSYS_ = 1;
MCLK->APBCMASK.bit.CCL_ = 1;
/* Configure PORT */
PORT->Group[2].DIRSET.reg = (1<<5);
PORT->Group[2].EVCTRL.reg = 0x85; // PC05, OUT
/* Configure EVSYS */
EVSYS->USER[1].reg = 0x01; // Channel0 -> PORT_EV0
EVSYS->Channel[0].CHANNEL.reg = 0x74 | (0x02<<8) | (0x00<<10); // CCL_LUTOUT0, ASYNCHRONOUS, NO_EVT_OUTPUT
/* Configure CCL */
CCL->CTRL.reg = (1<<0); // SWRST
CCL->SEQCTRL[0].reg = 0x0; // Disable SEQCTRL
CCL->LUTCTRL[0].reg = (0xaau << 24) | (1u<<22) | (0x6<<8) | (1<<1); // TRUTH=0xaa, LUTEO, INSEL0=0x06(TC), ENABLE
CCL->CTRL.reg = (1<<1); // ENABLE
/* Configure TC0 */
TC0->COUNT8.CTRLA.reg = (1u<<0); // SWRST;
while( TC0->COUNT8.SYNCBUSY.bit.SWRST );
TC0->COUNT8.CTRLA.reg = (0x01 << 2) | (0x01 << 4) | (0x04 << 8); // MODE=COUNT8, PRESCALER=DIV16, PRESCSYNC=PRESC
TC0->COUNT8.WAVE.reg = 0x02; // WAVEGEN=NPWM;
TC0->COUNT8.CTRLBSET.reg = (1u<<1); // LUPD
TC0->COUNT8.PER.reg = this->maxBrightness;
TC0->COUNT8.CC[0].reg = this->currentBrightness;
TC0->COUNT8.CC[1].reg = 0u;
TC0->COUNT8.DBGCTRL.bit.DBGRUN = 1;
TC0->COUNT8.INTFLAG.reg = 0x33; // Clear all flags
while( TC0->COUNT8.SYNCBUSY.reg );
TC0->COUNT8.CTRLA.bit.ENABLE = 1; // ENABLE
while( TC0->COUNT8.SYNCBUSY.bit.ENABLE );
}
};
#endif //LCD_BACKLIGHT_HPP__
